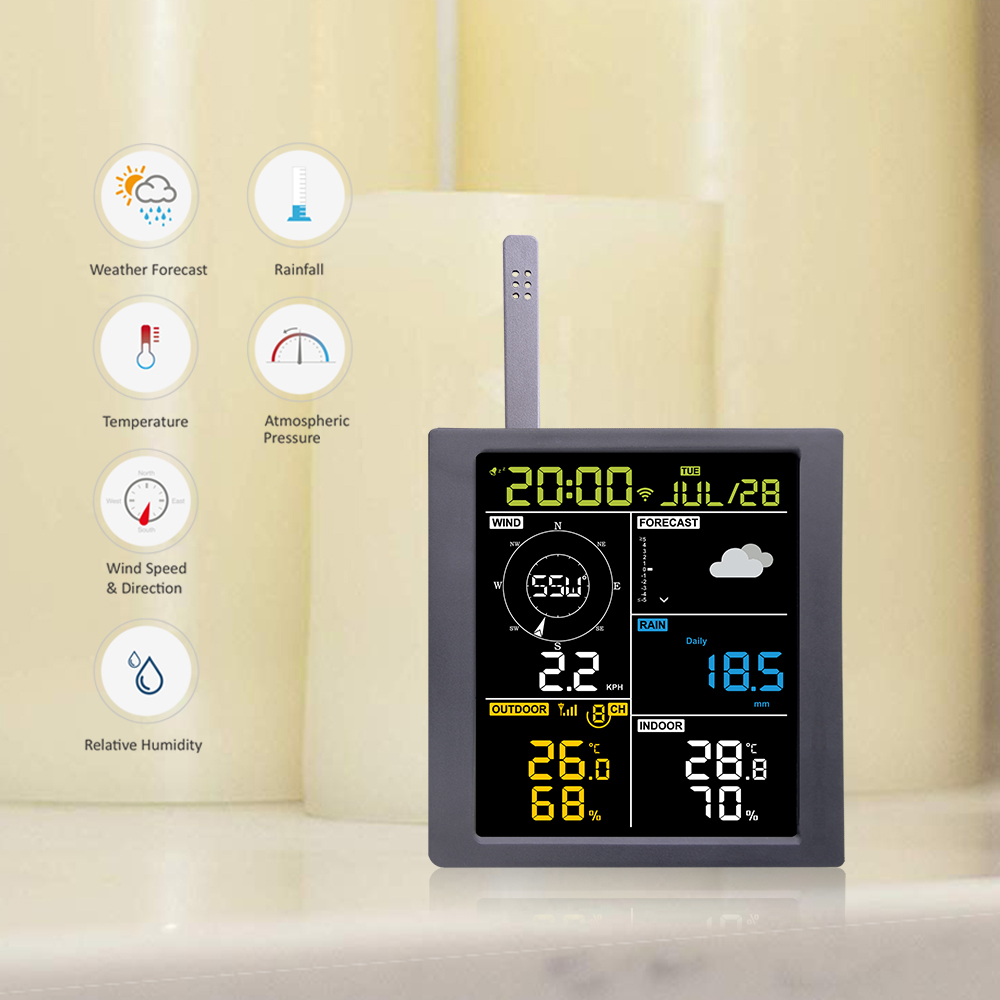

WN1920

WiFi Color Weather Station

1.Two ways to configure WiFi: through WS View Plus app or embedded web page.
2.New low energy Wi-Fi system
3.All-in-one outdoor sensor array
4.Live Data on APP

Add To Cart

Features

·         Provide 2 ways to configure WiFi: through WS View Plus app or embedded web page.

·         Live Data on APP: Makes all sensor data available to WSView Plus app on your local network

·         WiFi capable: enable your station to publish its data wirelessly to Ecowitt/Weather Underground/Weather Cloud/WOW and view the current weather condition directly via WSView Plus app.

·         Global time synchronization while base station connected with the internet

·         Supports up to 8 outdoor temperature & humidity sensor (optional)

·         Calendar

·         Indoor/Outdoor temperature and humidity

·         Wind speed, gust speed, and wind direction

·         Absolute and Relative barometric pressure

·         Rainfall rate and totals for one hour, one day, one week, one year

·         Wind chill, dew point and heat index display

·         Selectable display units for each sensor: C or F (temperature); mph, kph (wind speed); inHg, hPa or mmHg (pressure); in or mm (rainfall).

·         Weather forecast based on barometer reading

·         High/low alarm for indoor& outdoor temperature and humidity

Set includes:

1) Display Console

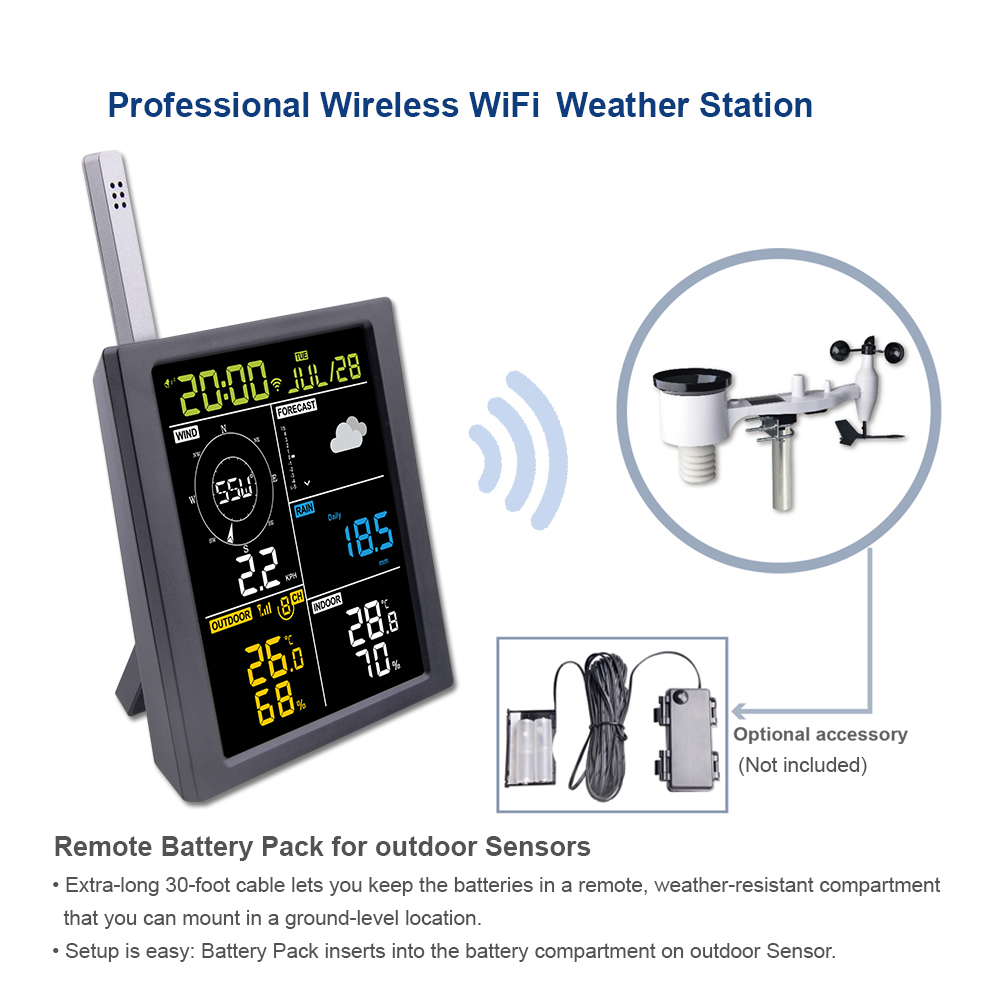

2) Outdoor Integrated sensor(Thermo-hygrometer / Rain Gauge / Wind Speed / Wind direction /Transmitter)
3) USB to 2.5*0.7mm DC 5V power plug connector cable




Specifications

Outdoor data




Transmission distance in open field

:  100M

Frequency

:  433MHz/868MHz/915 MHz depending on location

Temperature range

-40˚C--60˚C (-40˚F to +140˚F)

Accuracy

+ / - 1 °C

Resolution

:  0.1˚C

Measuring range rel. humidity

:  10%¡«99%

Accuracy

+/- 5%

Rain volume display

:  0 – 9999mm

(show --- if outside range)

Accuracy

+ / - 10%

Resolution

:  0.1mm (if rain volume < 1000mm)

1mm (if rain volume > 1000mm)

Wind speed

0-50m/s (0~100mph)

(show --- if outside range)

Accuracy

+/- 1m/s (wind speed< 5m/s)

 +/-10% (wind speed > 5m/s)

Measuring interval thermo-hygro sensor

16 s





Indoor data

Indoor temperature range

: 0˚C--50˚C (32˚F to + 122˚F)                          (show --- if outside range)

Resolution

:  0.1˚C

Measuring range rel. Humidity

:  10%¡«99%

Resolution

:  1%

Measuring range air pressure

:  700-1100hPa (20.67-32.5inHg)

Accuracy

+/-3hpa

Resolution

0.1hPa (0.01inHg)

Alarm duration

120 sec

Measuring interval indoor data

60s



Power consumption

·     Base station :  5V DC (USB to 2.5*0.7mm DC 5V power plug connector cable included)

·     Base station :  2 x AA batteries (not included)

·     Remote sensor:  2x AA batteries (not included)

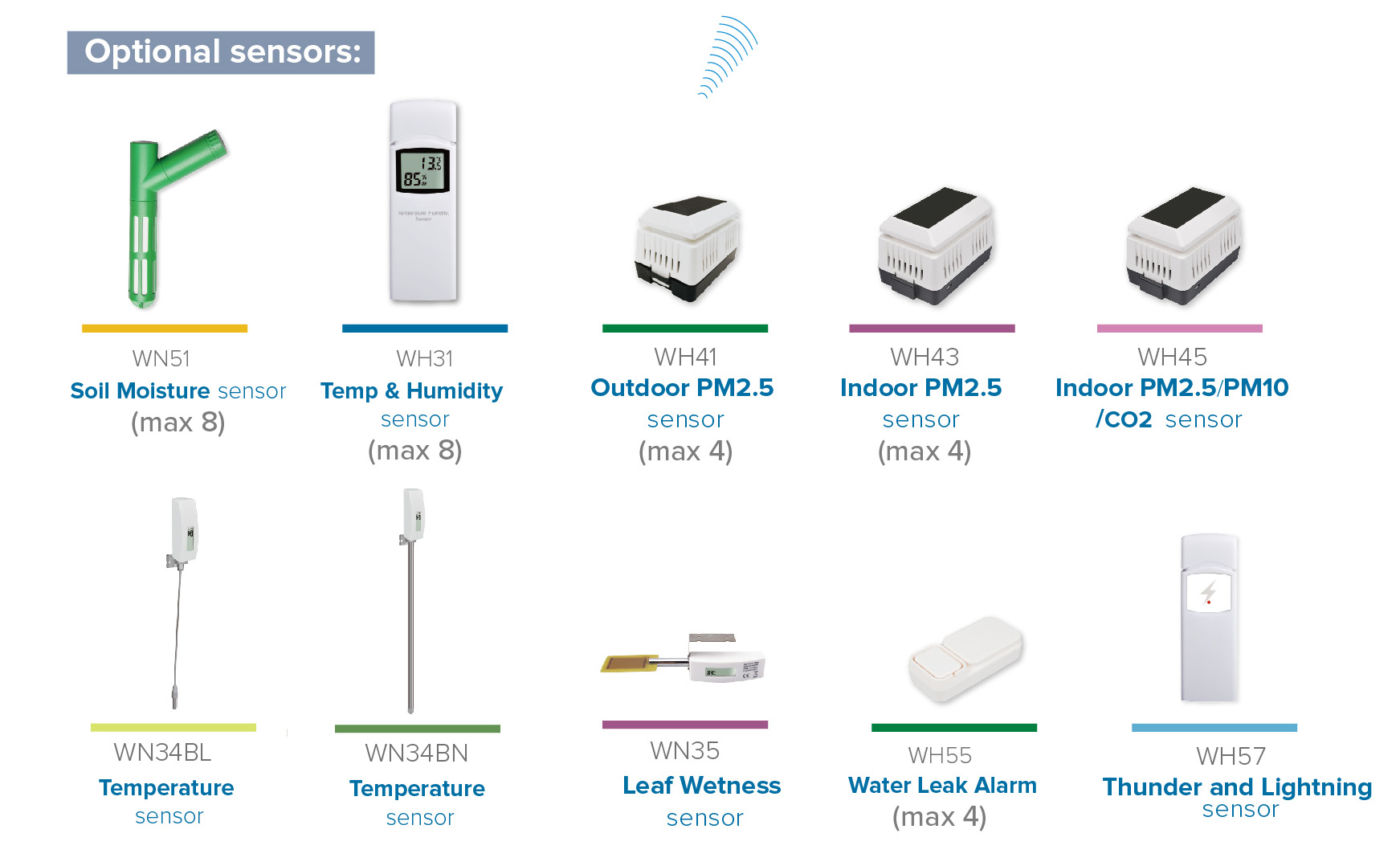

Supports MAX 8 WH51 soil moisture sensor + MAX 4 WH41 PM2.5 air quality sensor + MAX 8 WH31 multi channel temperaure and humidity sensor + 1 WH57 Lightning sensor + Max 4 Water leak sensor with console firmware V1.6.0 or above (Sold separately). 8 WH31 multi channel temperaure and humidity sensor recycle display on the console. Other extra sensors data is not displayed on the console (pass through only) and sensor management and calibration can only be realized via WS VIEW app.
