WS3800

Large LCD display WiFi weather station

DimensionReceiver:209x142.5x28.5mmFeatures1.7.5’LargeLCDscreen.2.WiFicapable:enablesyourstatio

Add To Cart

Features



      Dimension

Receiver: 209x142.5x28.5mm



Features

1.      7.5’  Large LCD screen.

2.      WiFi capable: enables your station to publish its data wirelessly to weather servers: Ecowitt.net, Weathercloud, Wunderground, WOW or third part server. Easy integration to 3rd party system. And view the current weather condition directly via our weather app.

3.      Indoor temperature, humidity, air pressure measured by display console in-built sensor

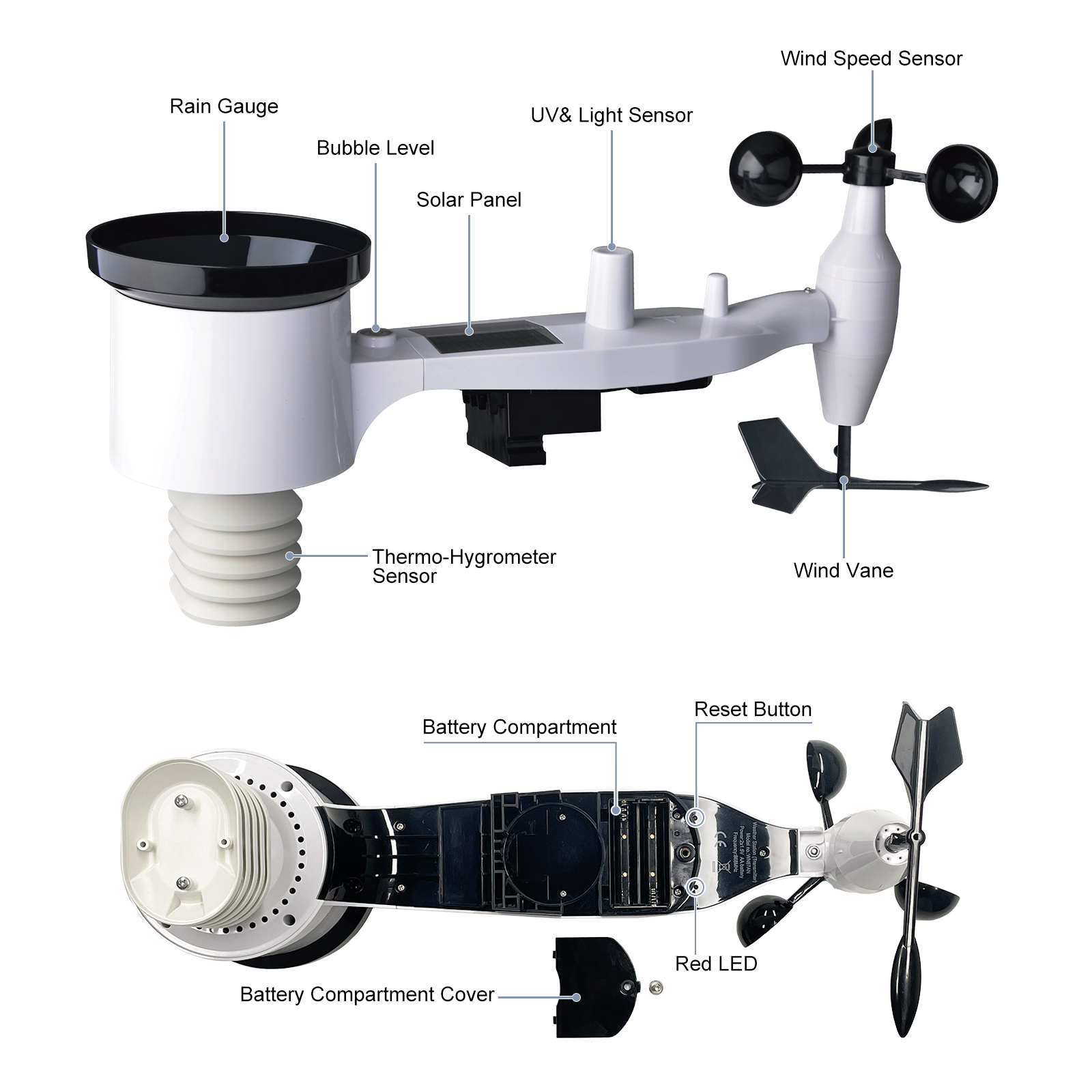

4.      Wireless Outdoor Solar Powered 7-in-1 Weather Sensor measures temperature, humiditywind speed, wind direction, rainfalllight and UV.

5.      Supports receiving and display up to 8 outdoor temperature & humidity sensor (optional)

6.      Support receiving and displaying CO2, PM1.0, PM2.5, PM10 and AQI data from air quality sensor (optional).

7.      Can paired with up to 16 IoT Devices (WFC01 smart water timers/AC1100 smart plugs) to enable remote control through the Ecowitt app.

8.      Support over 49 sensors uploading data to ecowitt weather server. Combined with the Ecowitt app, WSView Plus app and Ecowitt.net, you will get a more powerful data service function.

9.      Weather forecast, moon phase, sunrise/sunset

10.   Global time synchronization while base station connected with the internet

11.   5 levels of brightness adjustment: Max/High/Medium/Low/Off

12.   Data storage on Ecowitt server: https://ecowitt.net

13.   Time Alarm/Snooze



Specifications



Specification

Indoor Temperature range

-9.9°C – 60°C

Outdoor Temperature range

-40°C – 60°C

Temperature accuracy

±C

In/Outdoor Humidity range

1% ~ 99%

Humidity accuracy

±5%

Barometric pressure range

300 – 1,100 hPa (8.85 – 32.5 inHg)

Barometric pressure accuracy

± 5 hPa in 700 – 1,100 hPa range

Rain range

0-9999mm

Rain accuracy

±10%

Wind Speed range

0-50m/s

Wind Speed accuracy

+/- 1m/s (wind speed< 5m/s)

 +/-10% (wind speed > 5m/s)

Sensor reporting interval

60 seconds

Alarm Duration

120 seconds



Power

Specification

Base station/console

5V 1A DC Adapter (a USB to 2.5*0.7mm DC 5V power plug connector cable included)

Outdoor sensor

Solar panel (built-in) 6.5V/4mA

Outdoor sensor (backup)

2 x AA 1.5V battery (not included)
