APP for wi-fi setting,user can download this APP - WS TOOL from APP store,more easy to use

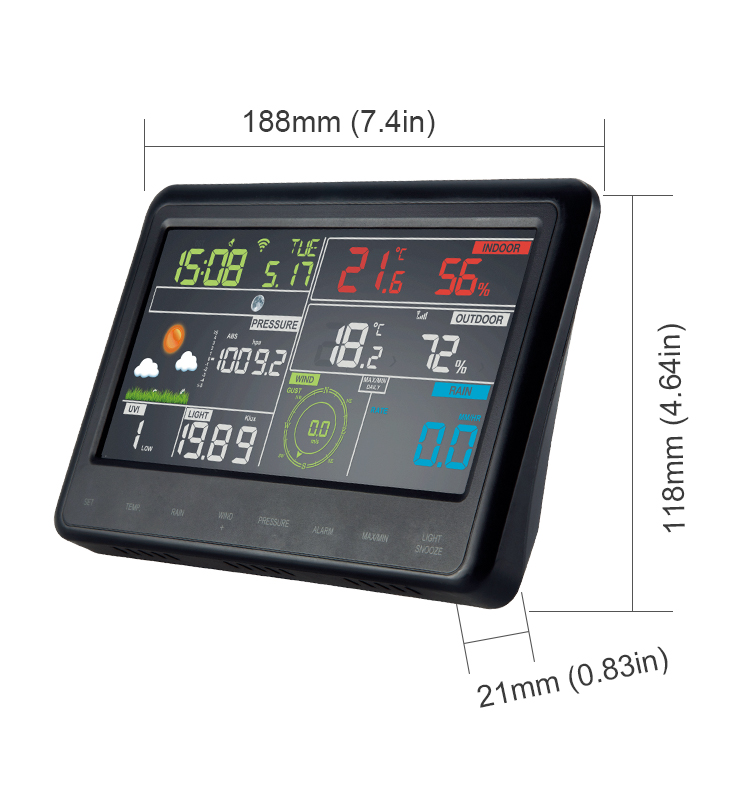

1. Color display
2. touch keys
3. WIFI module
4. Auto uploading data to net server
5. Get Time from net
6. Auto DST
7. Calendar (Month/date, 2000-2099 Default Year 2016)
8. Time (hour/minute)
9. In/outdoor Temperature/Humidity in C/F selectable
10. In/outdoor Temperature/Humidity Trend

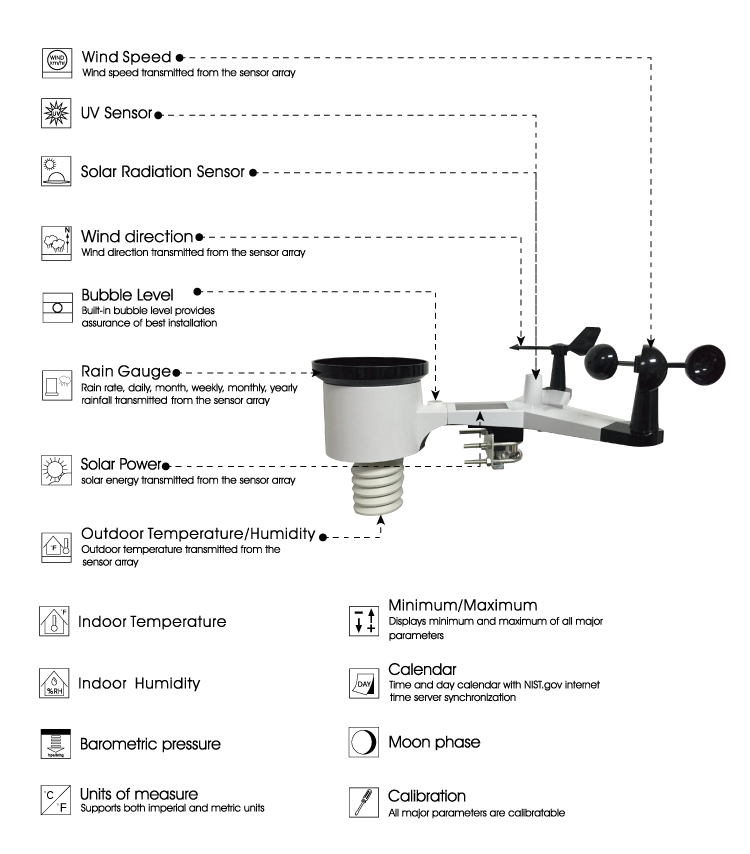

11. Display wind, gust and wind direction
12. Wireless Wind and Wind direction with 1 degree resolution, accuracy: +/-12degrees
13. Wind speed in ms, km/h, mph, knots and bft (accuracy: <10m/s: +/-1m/s, >=10m/s: 10%)
14. Wireless Rainfall
15. Rainfall in inch, mm (accuracy: +/-10%)
16. Display rainfall in rate, event, day, week, month and total.
17. Independent alerts for indoor & outdoor temperature & humidity
18. Independent alerts for rain rate and rain day.
19. Independent alerts for wind speed.
20. Weather forecast: Sunny, Partly sunny, Cloudy, Rainy, Stormy and Snowy
Pressure display with hpa, mmhg or inhg unit.
21. Heat index, wind chill and dew point for outdoor
22. High/Low records for indoor/outdoor temperature/humidity
23. MAX/MIN data records.
24. High/Mid/Off backlight controlled
25. User accuracy calibration supported
26. Automatically to saved user set parameters (unit, calibration data, alarm data...) in to EEPROM.
27. When DC power adapter is connected, back light is on permanently. When only battery operated, back light is turned on only when button is pressed and auto time out is 15s.
WS TOOL APPs QR Code:
Scan below QR code to get the WS TOOL app,only for connecting the weather station to Wunderground
Scan below QR code to get the WunderStation app to view your weather data in Wunderground
Measuring range rel. humidity:10%～99%
Accuracy : +/- 5%
Rain volume display: 0 – 9999.9mm
Resolution:0.3mm (if rain volume < 1000mm)
1mm (if rain volume > 1000mm)
Wind speed:0-50m/s (0~100mph)
Accuracy:+/- 1m/s (wind speed< 5m/s)
+/-10% (wind speed > 5m/s)
Wind direction: 0 to 359 degree
Light: 0-400k Lux
Accuracy : +/-15%
Measuring interval outdoor sensor: 16 sec
Indoor temperature range:-10˚C--60˚C
Measuring range rel. humidity: 10%～99%
Measuring interval indoor sensor: 60 sec
Base station: 5V 0.5A DC adaptor (included)
Or 3XAAA 1.5V LR6 Alkaline batteries(not inld)
Remote sensor: 2 x AA 1.5V Alkaline batteries (not inld)
