1. Supports both Wi-Fi and 4G connections
2. Compatible with various Ecowitt sensors
3. Prioritizes Wi-Fi for data upload to the weather station server
4. Compatible with IoT devices
5. Supports customized monitoring elements
6. Saves data as CSV files on an SD card
Networking: Supports both Wi-Fi and 4G connections, prioritizing Wi-Fi for data upload to the weather station server
Sensor Support: Compatible with various Ecowitt sensors for extensive meteorological data collection.
Web Functions: Offers web configuration, sensor data viewing, server settings, calibration parameters, and sensor ID settings.
IoT Functionality: Compatible with IoT devices, enhancing automation and integration capabilities
Automatic Features: Includes automatic timezone and network time acquisition, as well as unit settings
Power Supply: A 7W solar panel ensures sufficient power in areas with limited sunlight, and an 8pcs Ni-MH battery pack supports the gateway for 30 days without charging
Data Management: Saves data as CSV files on an SD card, with calibration and alarm setup available on the website.
Real-Time Monitoring: Monitors temperature, humidity, rainfall, wind speed, wind direction, light, pressure, and more, with support for customized monitoring elements.
Specificaton
|
Dimensions |
187*138*55(mm) L*W*H |
|
Weight |
694.5g (8 batteries involved) 457g (WS6210 only) |
|
Sim card |
Nano-SIM |
|
SD card |
8G Micro SD |
|
Cellular and Wireless |
Support LTE 3GPP Rel.13 technology, support 4G network |
|
Supported Brand |
4G LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28/B66 4G LTE-TDD B34/B38/B39/B40/B41 2G GSM 850/900/1800/1900 |
|
RF Connection Frequency |
920/915/868/433MHz (depending on local regulations) |
|
RF Wireless Range |
Over 100 meters (in open areas) |
|
WLAN |
802.11 b/g/n 2.4 GHz (802.11n, Max 150 Mbps) |
|
WLAN Wireless Range |
Over 30 meters (in open areas) |
|
Power Supply |
12V solar panel (or DC power supply with USB connector, input 5-15V, not included) |
|
Indicator Light |
Unlock, RF, Wi-Fi, 4G |
|
Button |
Touch button: Reset, AP Physical button: Power |
|
Operating Temperature |
-20 to 60℃ (-4 to 140°F) |
|
Port Material |
2-core waterproof aviation connector |
|

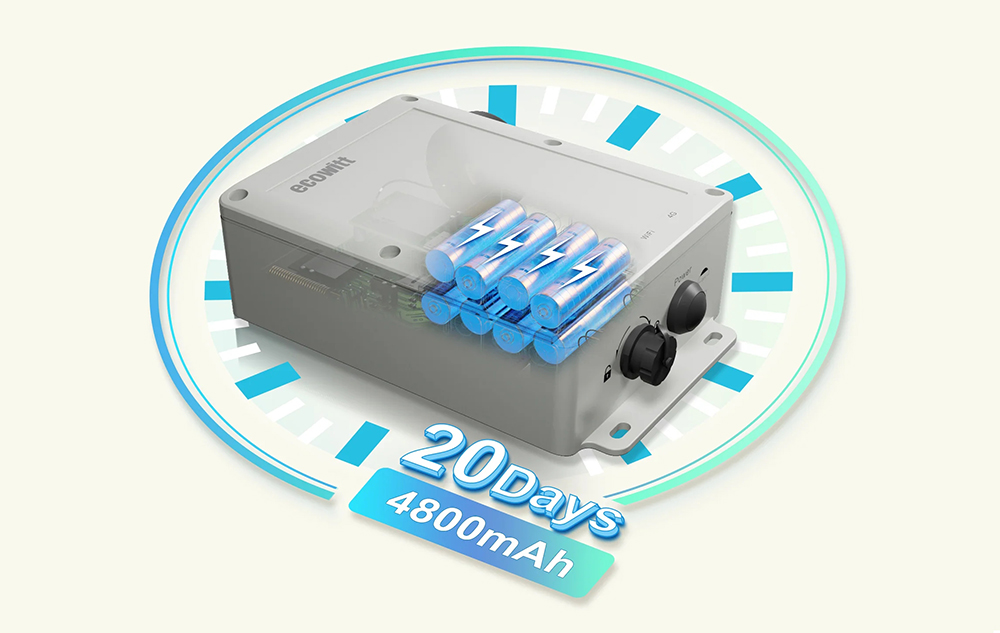

Battery Capacity |
4800 mAh @5V |
|
Battery Life |
20 days (5-minute upload interval, AP off, not connected to IoT Sub device) 10 days (5-minute upload interval, AP off, connected to IoT Sub device) |
|
Power Consumption |
0.06W, 10mA (AP off, not connected to IoT) 0.12W, 10mA (AP off, connected to IoT) 0.9W, 150mA (AP on, connected to Wi-Fi, not connected to IoT) 0.96W, 160mA (AP on, connected to Wi-Fi, connected to IoT) 0.8W, 133mA(AP off, connected to WiFi, not connected to loT) 0.85W, 142mA（AP off, connected to WiFi, connected to loT) While in a 5-minute upload interval |
|
USB charging power |
5V, 1A |
|
Posting intervals |
By default: 5 minutes The setting range is "off, 1, 2, 3, 4, 5, 10 minutes." Shortening the posting interval will increase power consumption |
